Description

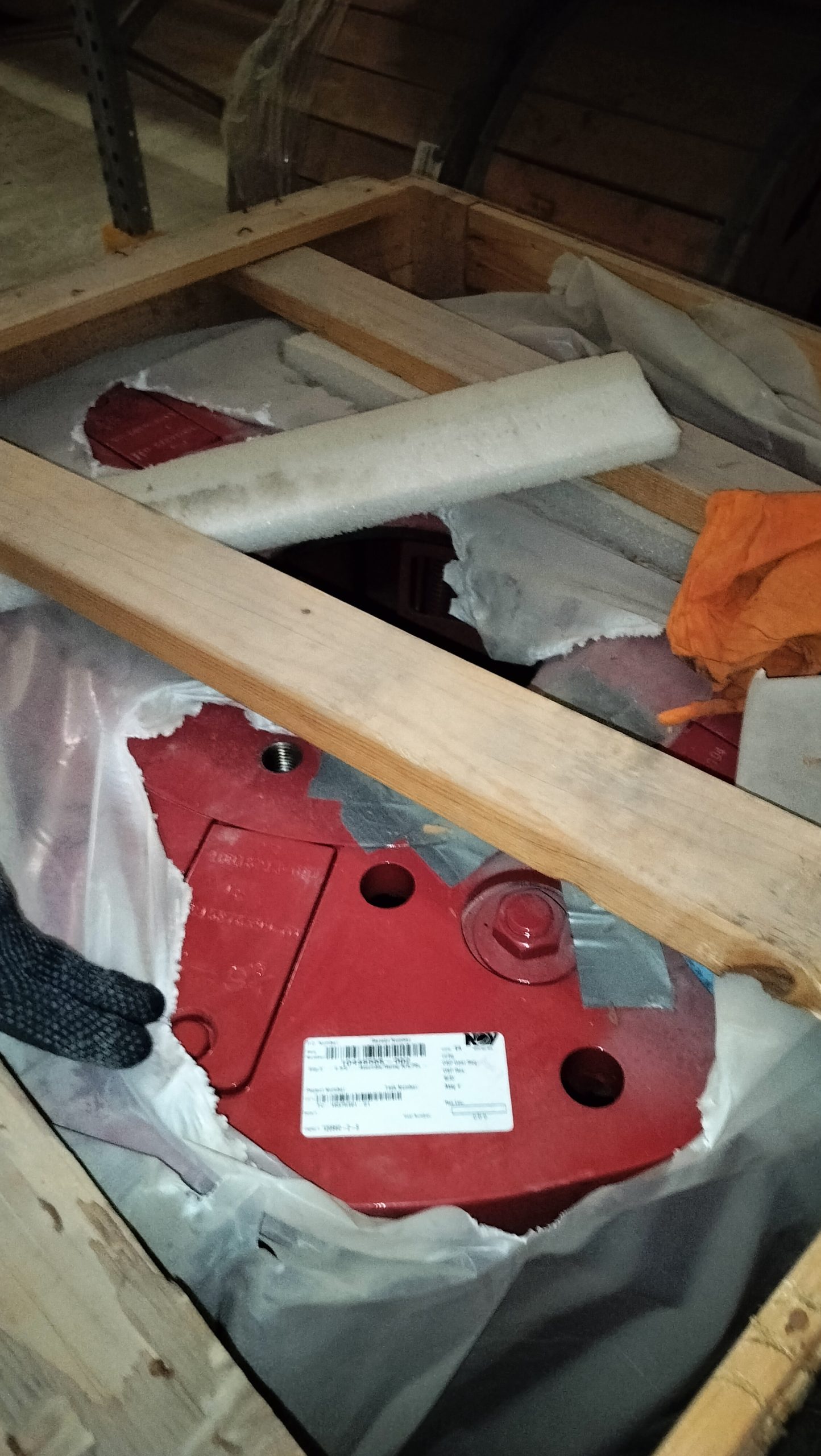

New Unused – SLIP, FOX HOLE SPIDER ASSEMBLY VARCO PN 671452; PIPE HANDLING; FSA;3-1/2″ TO 14″ WITH BELOW ITEMS

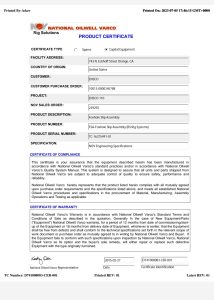

COC

<< Product package consists of:
A) Foxhole® Slip Assy. (FSA), 3-1/2″ to 14″ Tubulars with Proximity Sensor
B) Insert Kit, for 14″ Foxhole® Slip, 3-1/2 to 8-1/4 In.
C) Insert Kit, for 14″ Foxhole® Slip, 9-5/8 to 14 In.

Foxhole® Slip Assy. (FSA), 3-1/2″ to 14″ Tubulars with Proximity Sensor
Remote controlled, air operated, floor mounted, Foxhole® Slip Assy. is capable of holding 3-1/2″ thru 14″ OD tubulars. Remote operated Slips are designed for retaining singles, doubles or triples temporarily in a (customer supplied) Foxhole during off line stand building. Retains tubulars when making up with an Iron Roughneck or self backing Tong (not designed to provide back-up). Includes Control Plate Assembly consisting of air filter, pressure regular, lubricator, solenoid valve and J-Box. The assembly is dressed with a slip set for handling 5″ to 9-3/4″ OD tubulars; additional inserts may be purchased separately to accommodate other tubular sizes. Control is provided through the Auxiliary Control System.

Electrical Supply: 120 or 220 VAC, Phase, 50/60 Hz, 10 Amps
Pneumatic Supply: 90-150 psi [620-1035 kPa], 50 SCFM

Excludes Support Structure, Foxhole®, Cabling between Operator Switch (customer
supplied) and Foxhole® Slip Control Assy. or air lines between Control Plate Assy. and
Foxhole. Slip Assemblies are listed below.

Insert Kit, for 14″ Foxhole® Slip, 3-1/2 to 8-1/4 In. For adapting the 14″ Foxhole Slip to accommodate tubulars from 3-1/2 through 8-1/4 inchOD. Kit includes 6 slip assemblies.

Insert Kit, for 14″ Foxhole® Slip, 9-5/8 to 14 In. For adapting the 14″ Foxhole Slip to accommodate tubulars from 9-5/8 through 14 inch OD. Kit includes 6 slip assemblies. >>
