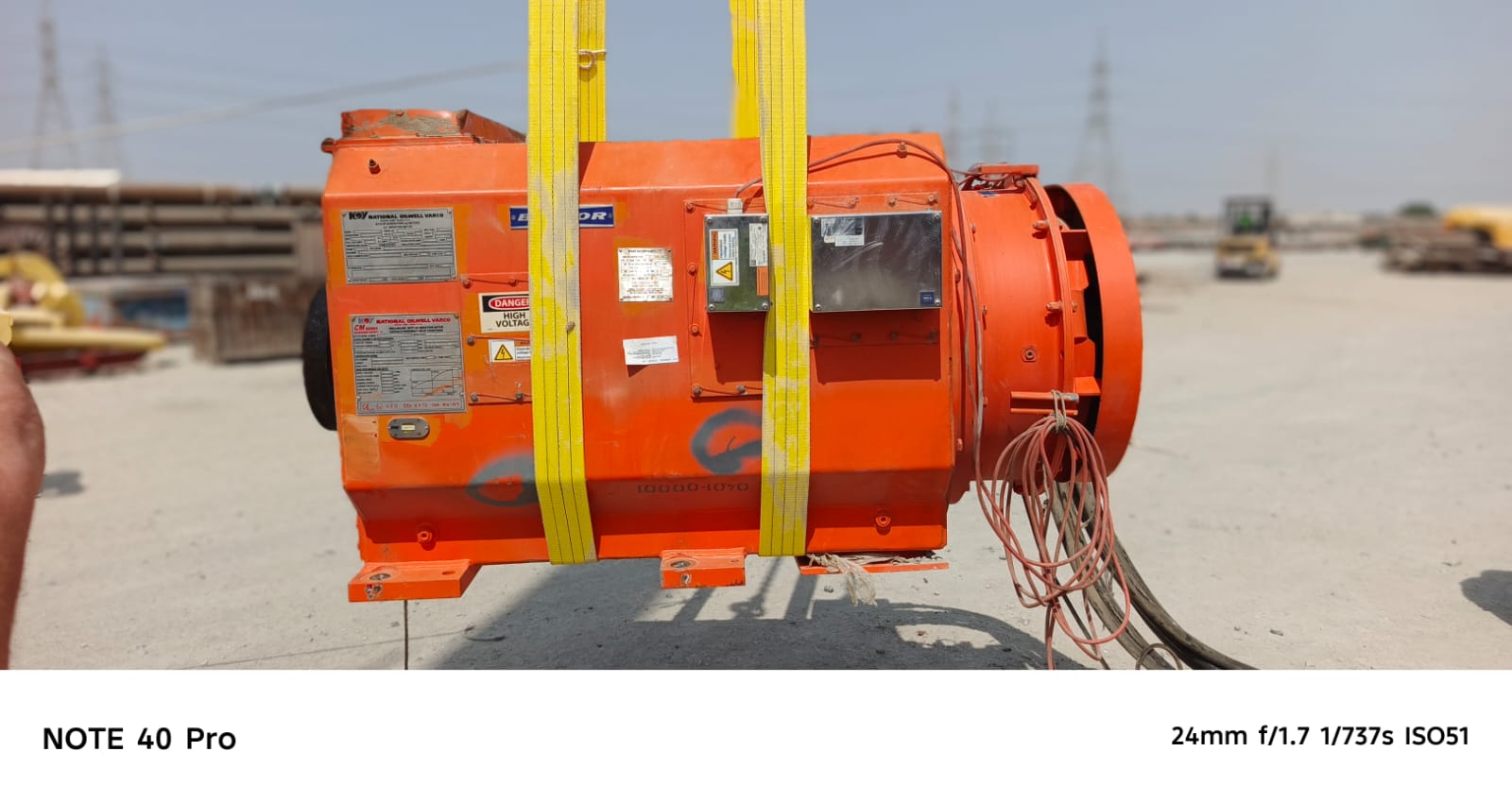

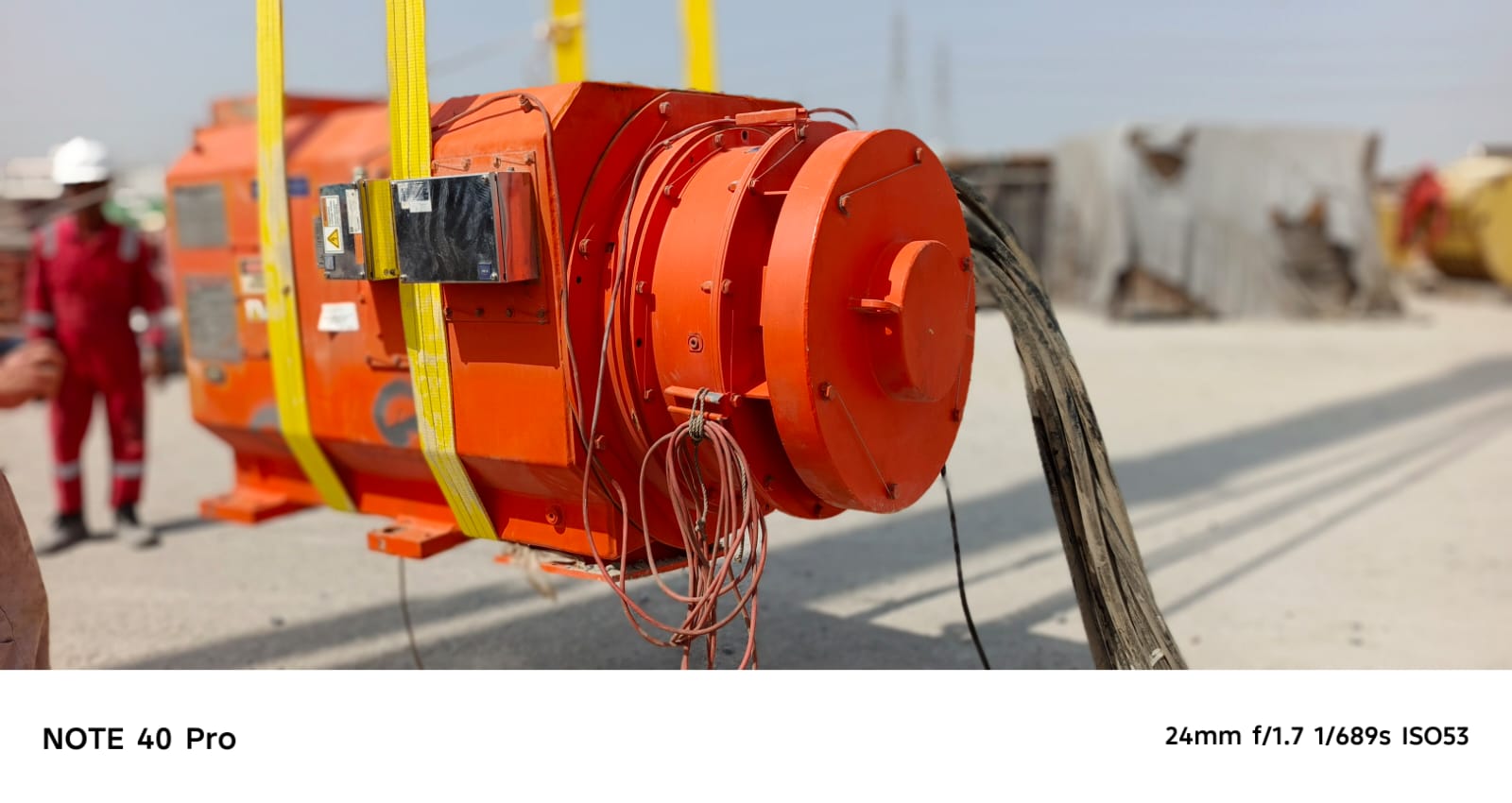

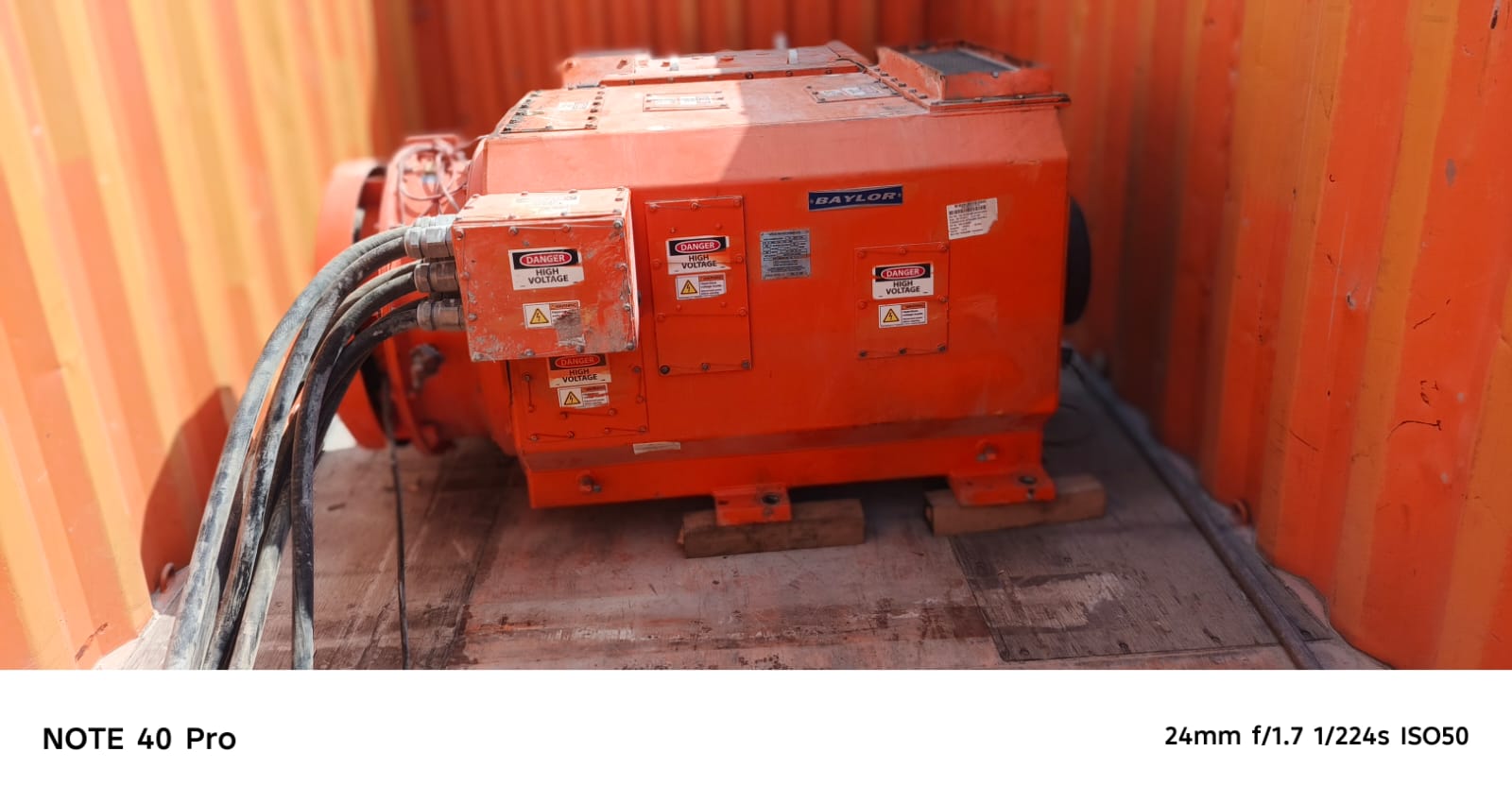

Drilling Rig Duty VCM SERIES VCM632UUT-114 AC Induction Motor (Variable Frequency Drive Conditions). NOV #Unit serial number: (RK) QC-60CM2413-1

Description

Drilling Rig Duty VCM SERIES VCM632UUT-114 AC Induction Motor (Variable Frequency Drive Conditions). NOV #Unit serial number: (RK) QC-60CM2413-1



Model: VCM632UUT-114 Unit serial number: (RK) QC-60CM2413-1
Country Of Manufacture: USA Present Location: HFZ 2 Sharjah UAE
Size: Inspection and testing: N/A



Manufacturer: NOV Temp Code: 13

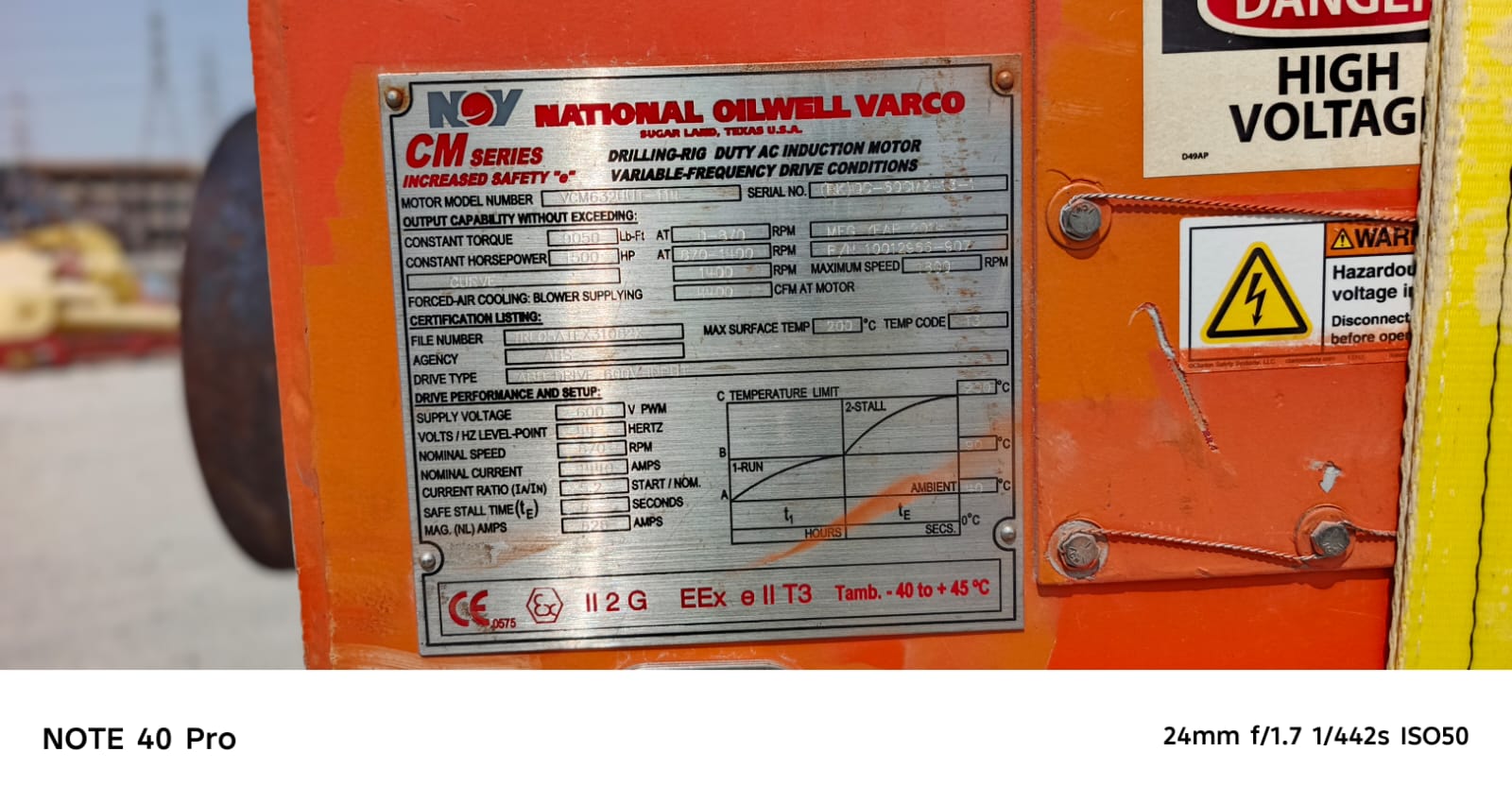

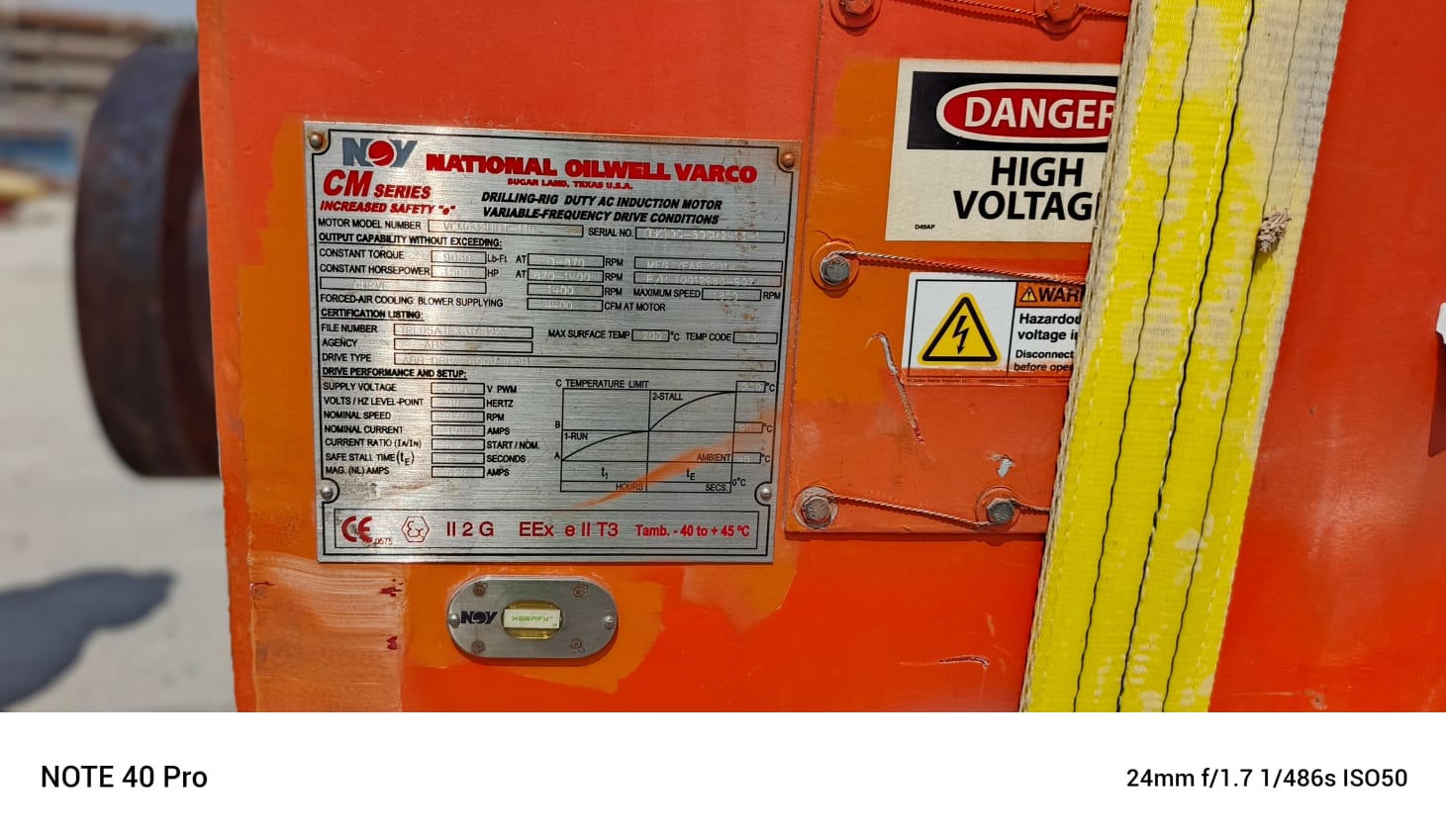

OUTPUT CAPABILITY WITHOUT EXCEEDING: Constant Torque 9050 lb-ft @0-870 RPM
Constant Horsepower 1500 hp @ 870-1400 Curve: 1400



Maximum Speed: 1800 RPM Forced-Air Cooling Blower Supplying 4400 cfm @ motor Certification Listing File Number: TRL 05ATEX 31082X
Agency: ABS Drive Type: ABB Drive 600V Input



Drive Performance and Setup: Supply Voltage: 600V PWM
Volts / HZ Level Point: 44 Hertz Nominal Speed 870 RPM
Nominal Current: 1440 Amps Current Ratio ( IA/IN): 5.2 Start/Nom Safe Stall Time: (tE)  6 Second
MAG (NL) AMPS 628 Amps Max Surface Temp    200°C




 Approximate Weight:

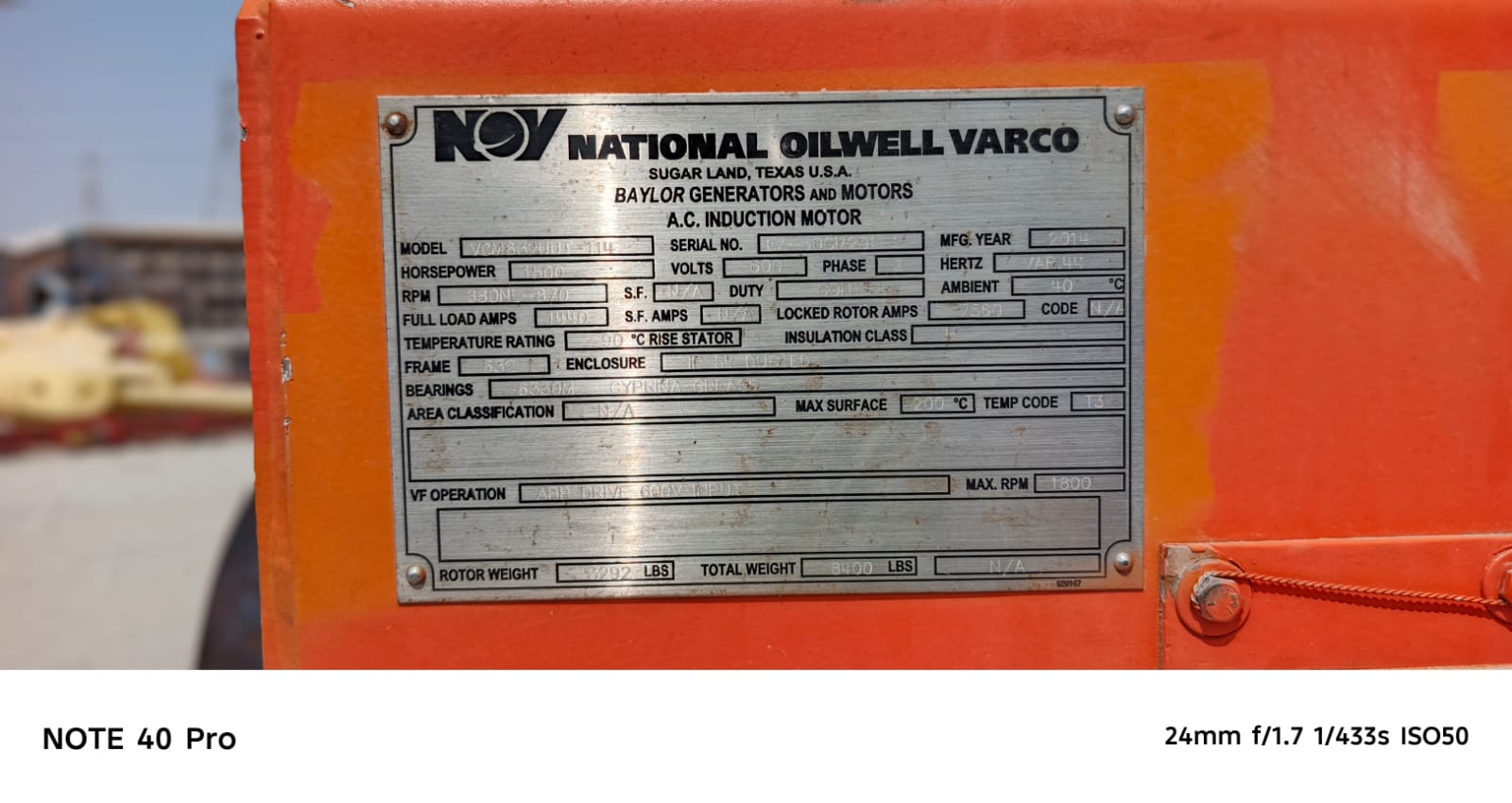

BAYLOR GENERATOR (AC INDUCTION MOTOR)

Model:



 VCM632UUT-114 Serial: EZ-60CM201-1
Horsepower: 1500 Volts 600
Phase 3 Hertz: Var.44
Rpm: 880NL-870 S.F Not Available
Duty: Continue Ambient: 40°C
Full Load Amps: 1440 S.F Amps: NA
Locked Rotor Amps: 7560 Code: Not Available
Temperature Rating: 90°C Rise Stator Insulation Class: H
Frame: 632 Enclosure: IP54 Ducted
Bearings: 6330M-Cyprina Grease Area Classification Not Available
Max Surface Temp: 200°C Temp Code: T3
VF Operation ABB Drive 600V Input Max RPM: 1800
Rotor Weight: 3292 lbs Total Weight: 3400 lbs

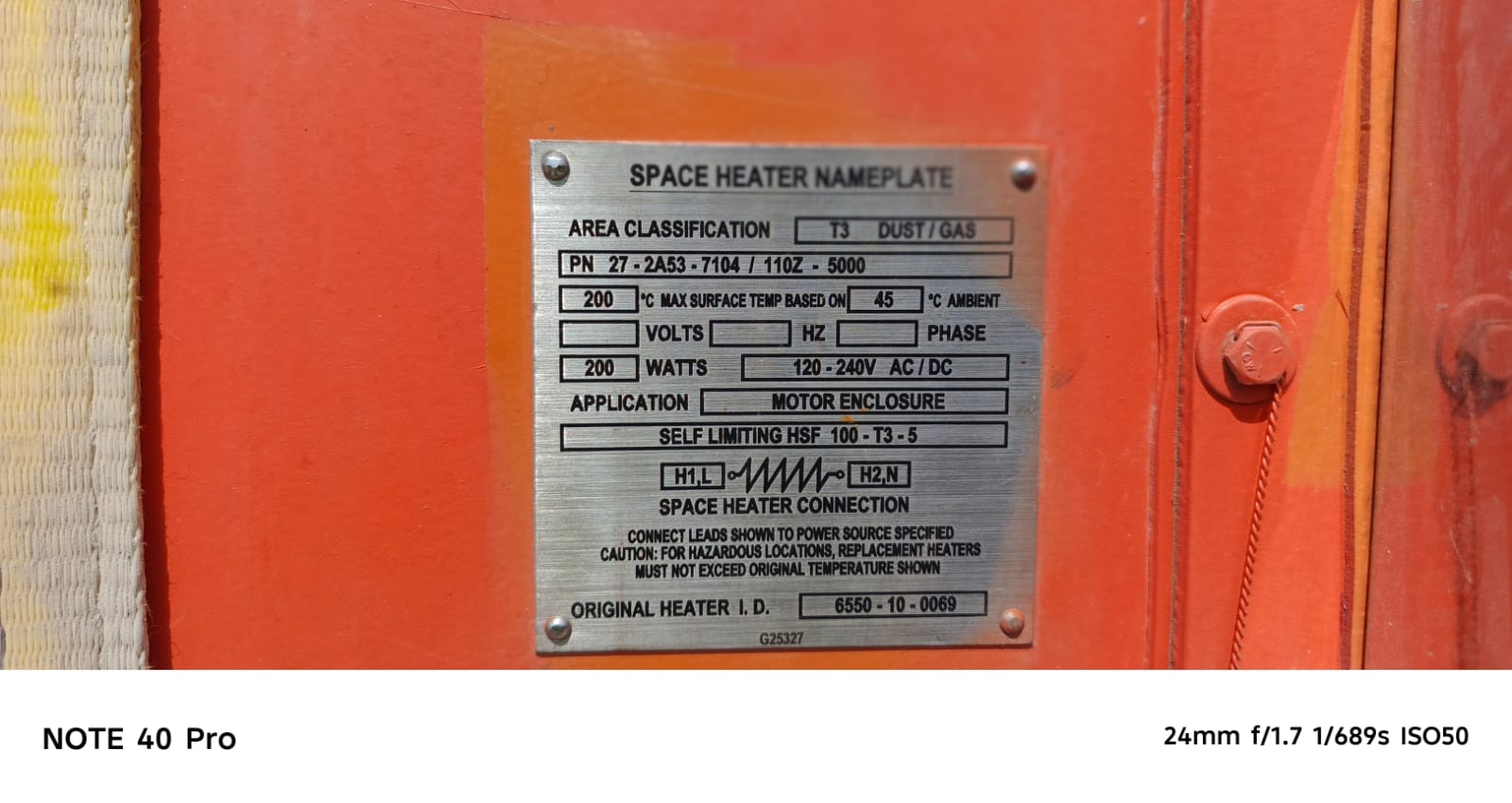

 SPACE HEATER (AC INDUCTION MOTOR)

Area Classification: T3 Dust/Gas P/N: 27-2A53-7104/110Z-5000
  200°C Max Surface Temp Based on 45°C Ambient   200 Watts 120-240V AC/DC
Application: Motor Enclosure Self Limiting HSF 100-T3-5
Original Heater ID 6550-10-0069
