National Oilwell 1320 UE Drawworks Parts Inspected & Refurbished to API Q2

Description

Price On Application

SL No.	Description	Qty	Part No.

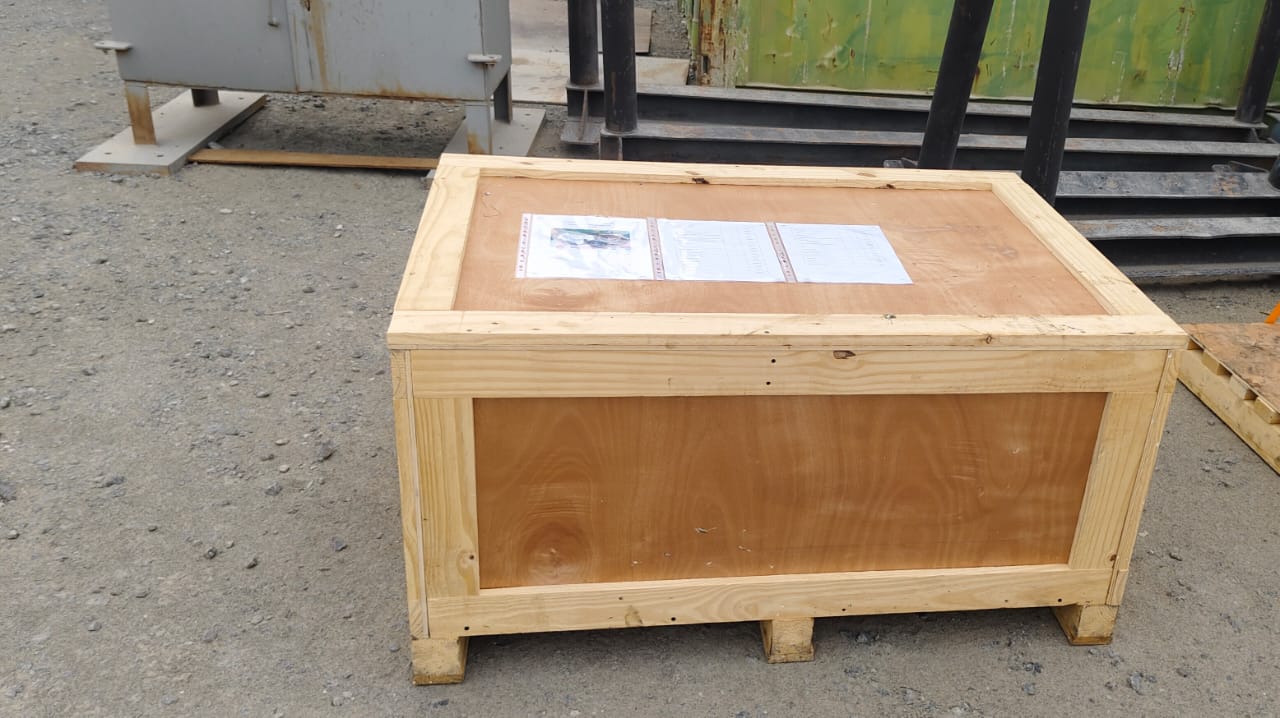

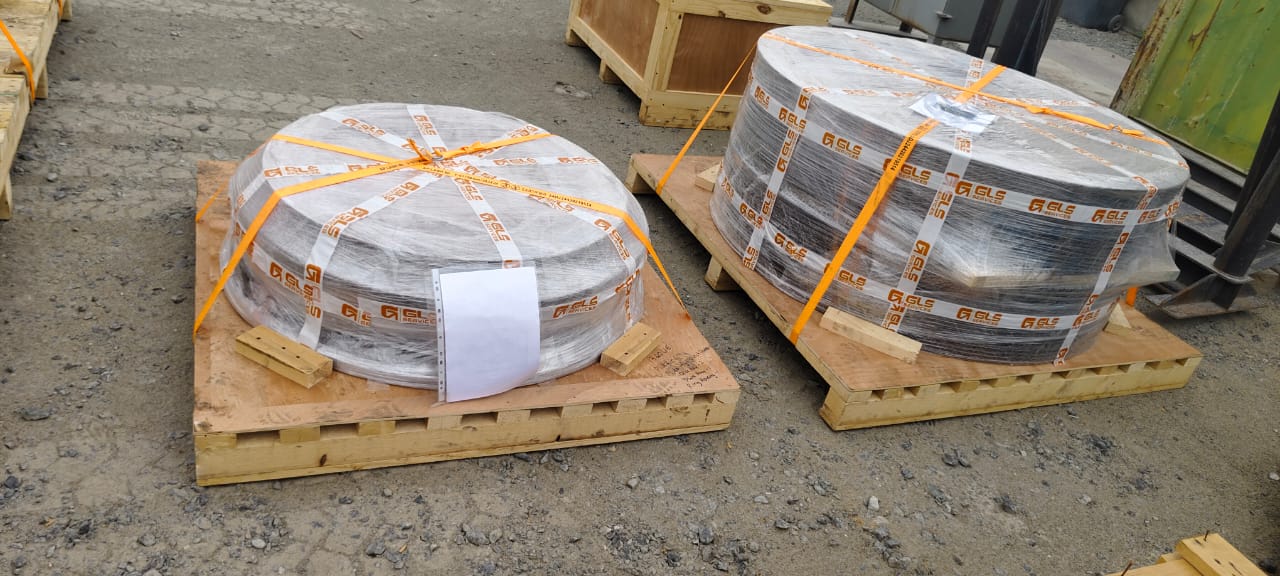

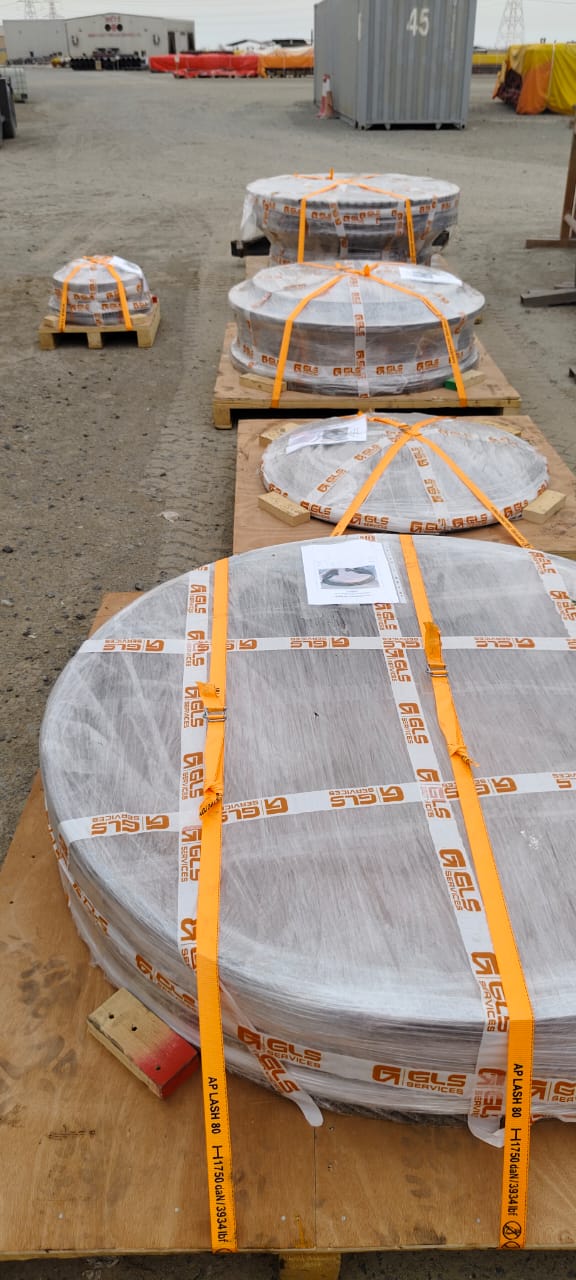

	Package #1, Dimensions: 150x150x73 cm
1	Housing Assy Air Clutch	1	622856-A
1.1	Block Support (Attached to the Housing Assy Air Clutch)	2	618027
1.2	Sprocket 86T 2P.4 (Attached to the Housing Assy Air Clutch)	1	641063
	Package #2, Dimensions: 65x65x48 cm
2	Ring Jaw	1	622855
3	Hub Lining Disc	1	622860
	Package #3, Dimensions: 125x125x30 cm
4	Cover Housing	1	622846
	Package #4, Dimensions: 125x125x50 cm
5	Plate Assy	1	622859
5.1	Nipple Drain (Attached to the Plate Assy)	1	622864
6	Ring Housing	1	622863
7	Plate High Clutch Center	1	619296
8	Plate	1	619295
9	Disc Assy Air Clutch	2	612362-A
	Package #5, Dimensions: 140x140x60 cm
10	Housing Flanged	1	626242
11	Plate End Drive	1	622839
12	Shoe	14	622837

SL No.	Description	Qty	Part No.
13	Torque Arm	14	621666
14	Spider High Clutch W/53T Spline	1	641065
15	Drum High Clutch	1	622832
16	Tubing	1 set	626234
	Package #6, Dimensions: 140x140x60 cm
17	Brake Rim	2	39783-S
18	Bolt Rim Brake	24	41039
	Package #7, Dimensions: 175x179x41 cm
19	Band Brake	2	500152
	Package #8, Dimensions: 400x150x167 cm

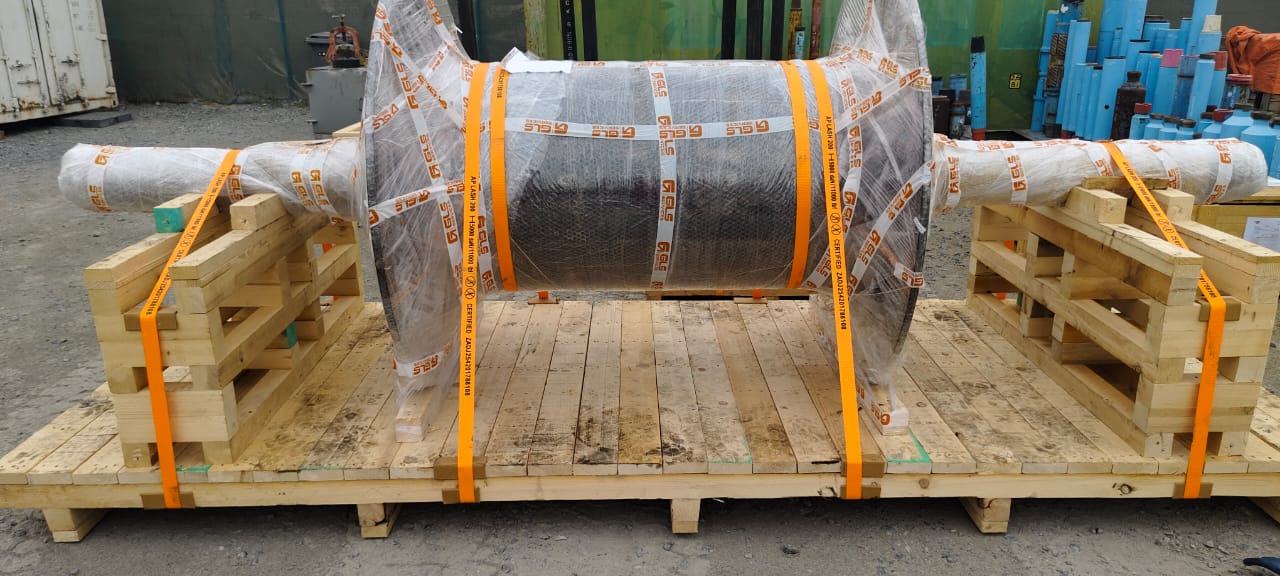

20	Main Shaft with Bare Drum	1	645900
20.1	Key 1-3/4 SQ (Attached with Main Shaft)	4	622865
	Package #9, Dimensions: 126x86x66 cm
21	Ring Diaphragm	1	622861
22	Plate Drum Shaft End	1	612376-X
23	Cover Brg Box RH	1	622959
24	Cover Brg Box	1	612322
25	Retainer Bearing	2	622850
26	Retainer Bearing Inner	2	622849
27	Sleeve Shifter	1	622848
27.1	Rod Shifter (Attached with Sleeve Shifter)	4	622854
27.2	Washer Spring Rod Shifter Clutch Low (Attached with Sleeve Shifter)	4	619282
27.3	Nut Hvy Hex Slotted 1″ (Attached with Sleeve Shifter)	4	6324160
27.4	Screw Rod Shifter (Attached with Sleeve Shifter)	4	619286
28	Rod Tie Clutch Low	19	619278
28.1	Tie Rod	20	619280
28.2	Nut Hex Slotted 1-1/8	20	6324182
29	Body Assy, Air & Water Conn	1	617543

SL No.	Description	Qty	Part No.
30	Washer Bearing Retainer	1	626364
31	Retainer Assy Diaph	1	622862-A
32	Rod Assy Shifter Yoke	1	622980-A1
33	Housing Packing	1	617538
34	Spear Water Inlet	1	617547
35	Ring Assy Shifter	1	612357-A
36	Spacer Bearing	1	612373
37	Spacer	1	622958
38	Pipe Lube	1	627899
38.1	Bracket Assy Pipe Support (Attached with Pipe Lube)	1	627859-A
39	Screw Drilled HD Cap 3/8″	2	607058
40	Quick Release Valve 1/2″ with Tubing STL 5/8″	2	7500162, 7401043
41	Elbow	2	NA
42	Follower Packing	1	617545
43	Spacer Bearing large	1	617539
44	Spacer Bearing Small	1	617539-1
45	Ring Lantern	2	617540
46	Spacer Seal	2	618438
47	Plate Retaining Packer	1	618442
	Package #10, Dimensions: 335x170x30 cm
48	Brake Shaft Assembly (Not Refurbished)	1	NA
	Package #11, Dimensions: 200x40x20 cm
49	Beam Assy (Not Refurbished)	1	622834-A
